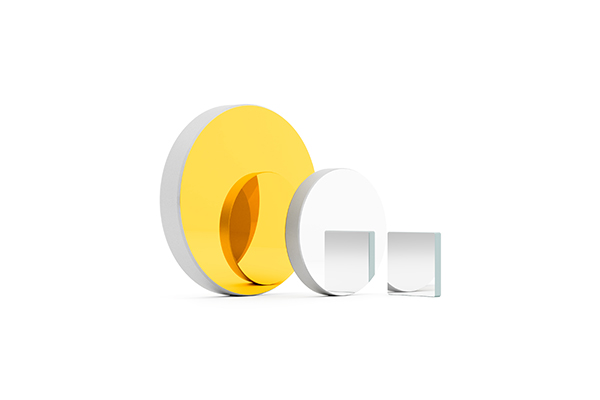

Plane mirrors also known as front surface mirrors or first surface mirrors are used in beam steering or reflecting applications.
We stock four grades of plane front surface mirrors with a range of up to six coatings to meet applications in the UV, Visible, NIR and FIR applications.
| Name | Wavelength range (nm) | Coating | Diameter (mm) | Length (mm) | Width (mm) | Thickness (mm) | Price | Buy |
| MGE425400 | 450-650 | Enh/Ali (94% visible) | 425 | 400 | 3 |
US$175.00
|
||
| MGE280200 | 450-650 | Enh/Ali (94% visible) | 280 | 200 | 3 |
US$80.48
|
||
| MGE560400 | 450-650 | Enh/Ali (94% visible) | 560 | 400 | 3 |
US$393.65
|
||
| MGD1011 | 450-700 | Dielectric (>98% visible) | 10 | 1.1 |
US$28.77
|
|||
| MGM4007 | 180-650 | Ali/MgF₂ (85% UV) | 40 | 25 | 3 |
US$50.60
|
||
| MGM5002 | 180-650 | Ali/MgF₂ (85% UV) | 50 | 50 | 3 |
US$69.92
|
||
| MGM4002 | 180-650 | Ali/MgF₂ (85% UV) | 40 | 40 | 3 |
US$61.16
|
||
| MEG1002 | 750-FAR IR | Gold (97%@750-FAR IR) | 10 | 10 | 3 |
US$27.94
|
||
| MEG1322 | 750-FAR IR | Gold (97%@750-FAR IR) | 12.5 | 3 |
US$36.56
|
|||
| MEG1502 | 750-FAR IR | Gold (97%@750-FAR IR) | 15 | 15 | 3 |
US$30.58
|
