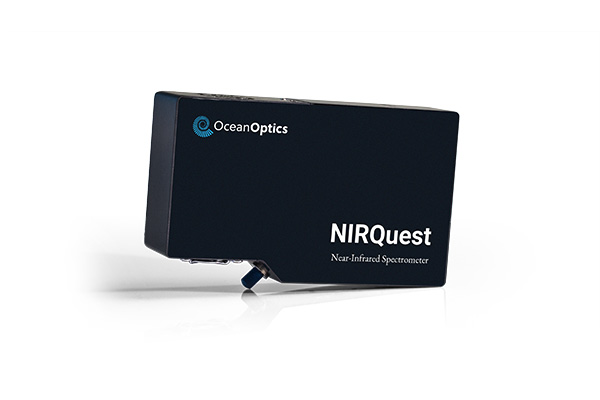

Ocean Optics NIRQuest+2.2 has a wavelength band between 900nm to 2450nm covering a wide spectral band. Available in different slit wdiths from 25µm to 200µm.
Specifications:
Wavelength Range
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
Integration time
Connectors
Physical dimensions
Weight
Temperature (operation)
Temperature (storage)
NIRQuest+2.5:
900 – 2450 nm
6.48 – 25.60 nm
10,000:1
1 – 200 ms
SMA 905 (input fiber)
182 x 110 x 47 mm
1.15 kg (spectrometer); 450 g (power supply)
10 °C – 35 °C
-30 °C – 70 °C
- Authentication of products
- Determination of hydrocarbon solvents
- Identification of plastics in recycling
- Moisture detection in fruits and grains
