Ocean Optics Near Infrared Spectrometers can measure from 900nm up to 2450nm dependent on the model. With high sensitivity and low noise, the spectrometers provide a feature-rich spectral response.
Specifications:
Wavelength Range
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
Integration time
Connectors
Physical dimensions
Weight
Temperature (operation)
Temperature (storage)

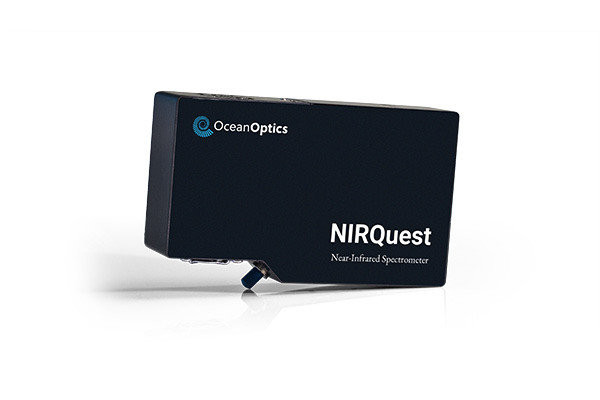

NIRQuest+1.7
900 – 1650 nm
2.8 – 11.06 nm
13,000:1
1 ms – 120 s
SMA 905 (input fiber)
182 x 110 x 47 mm
1.15 kg (spectrometer); 450 g (power supply)
10 °C – 35 °C
-30 °C – 70 °C
- Biological sample and tissue analysis
- NIR laser analysis
- Soil analysis
