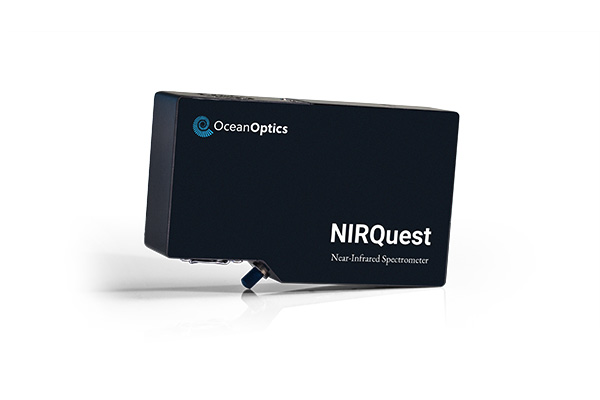

NIRQuest+2.2 is an ideal spectrometer for applications including chemical concentration measurements and methanol detection. With a wavelength range between 900 to 2120nm and features including high sensivity and low noise, these spectrometers provide detailed spectral analysis.
Specifications:
Wavelength Range
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
Integration time
Connectors
Physical dimensions
Weight
Temperature (operation)
Temperature (storage)
NIRQuest+2.2:
900 – 2120 nm
4.8 – 18.96 nm
10,000:1
1 ms – 1 s
SMA 905 (input fiber)
182 x 110 x 47 mm
1.15 kg (spectrometer); 450 g (power supply)
10 °C – 35 °C
-30 °C – 70 °C
- Chemical concentration measurements
- Methanol detection
- Transmission of photovoltaic materials
