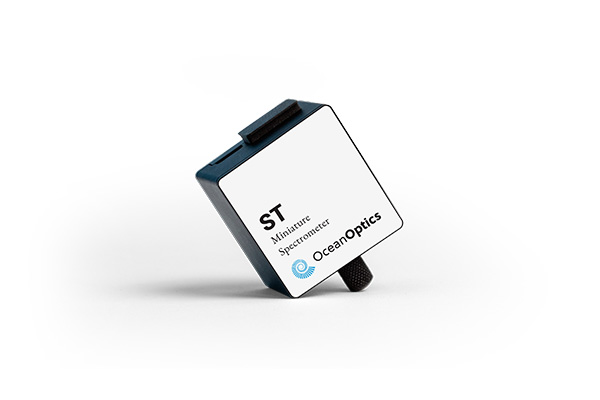

Ocean Optics VIS Microspectrometers are ideal for integration into OEM devices due to their ultra-compact design, colour measurement, LED characterisation and inline controls with limited space.
Specifications:
Wavelength Range
Integration time
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
SNR (max. per second w/High Speed Averaging Mode)
Connectors
Physical dimensions
Temperature (operation)
Temperature (storage)
ST-VIS:
350 – 810nm
3.8ms – 6s
2.2nm
190:1
2,250:1
SMA 905 (input fiber)
42.1 x 40.3 x 26.6mm
0°C – 55°C
-30°C – 70°C
- Colour measurement
- Integration into other devices
- LED characterisation
