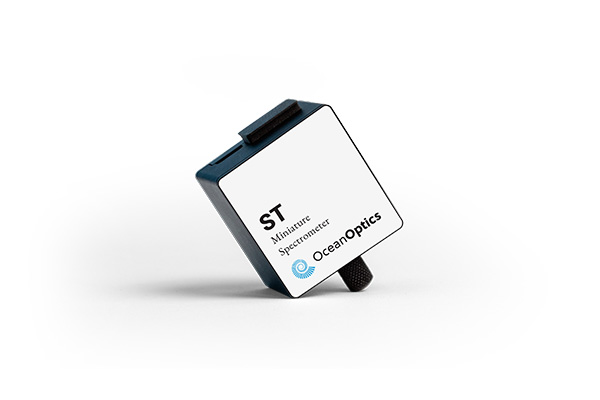

Ocean Optics ST-UV Microspectrometers are ideal for characterisation of biological samples (blood, DNA/RNA), fluorescence of chemical compounds, and integration into other devices due to its ultra-compact design.
Specifications:
Wavelength Range
Integration time
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
SNR (max. per second w/High Speed Averaging Mode)
Connectors
Physical dimensions
Temperature (operation)
Temperature (storage)
ST-UV:
185 – 650nm
3.8ms – 6s
2.2nm
190:1
2,250:1
SMA 905 (input fiber)
42.1 x 40.3 x 26.6mm
0°C – 55°C
-30°C – 70°C
- UV-VIS absorbance of biological samples (blood, DNA/RNA)
- Fluorescence of chemical compounds
- Integration into other devices
