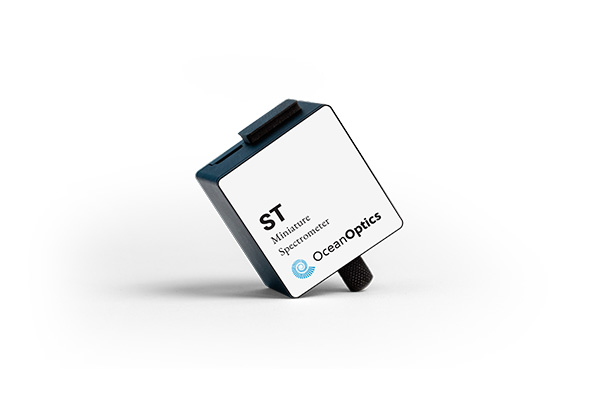

Ocean Optics NIR Microspectrometers are ideal for integration into OEM devices due to their ultra-compact design, material characterisation, plasma monitoring, and any application where physical space is limited space and powerful performance is critical.
Specifications:
Wavelength Range
Integration time
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
SNR (max. per second w/High Speed Averaging Mode)
Connectors
Physical dimensions
Temperature (operation)
Temperature (storage)
ST-NIR:
645 – 1085 nm
3.8 ms – 6 s
2.2 nm
190:1
2,250:1
SMA 905 (input fiber)
42.1 x 40.3 x 26.6 mm
0 °C – 55 °C
-30 °C – 70 °C
- Integration into other devices
- Materials reflectance
- Plasma monitoring
