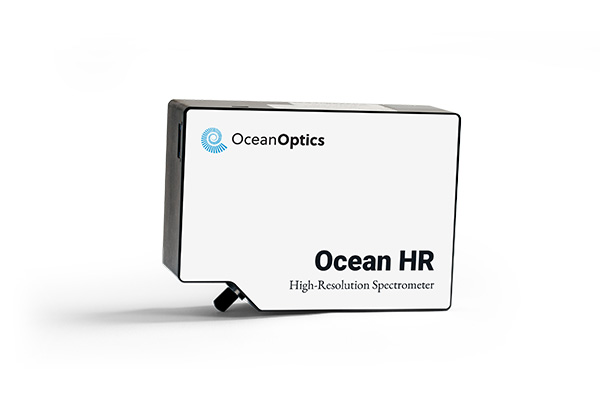

Ocean Optics High Resolution HR6 spectrometers offer high sensitivity, high resolution and excellent SNR performance for applications including absorbance of proteins and emission of broadband sources. For measurements requiring sub-nanometer resolution of spectral features, HR6 is an ideal choice.
Low UV to NIR wavebands, from 180nm to 1100nm. Multiple slit width options available determining an optical resolution to suit your application needs.
Contact our technical account managers for further information.
Specifications:
Wavelength Range
Integration time
Optical resolution (FWHM)
SNR (single scan @ 10 ms)
SNR (max. per second w/High Speed Averaging Mode)
Connectors
Physical dimensions
Weight
Temperature (operation)
Temperature (storage)
HR6:
180 – 1100 nm
7.2 ms – 5 s
0.08 – 7.24 nm
400:1
3,500:1
SMA, TFM-108-02-L-DH Samtec, USB Type-C
148.8 x 106.4 x 48.2 mm
0.9306 kg
0 °C – 55 °C
-30 °C – 70 °C
- DNA/RNA analysis
- Industrial environments
- Optical emission spectroscopy
