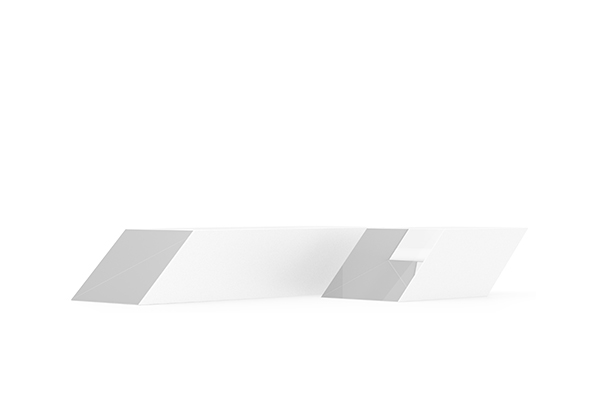

Knight Optical supply a range of Rhomboid prisms from stock that cover the UV visible and NIR range. Rhomboid prisms displace a light beam laterally and in effect represent a pair of single mirrors. Generally the reflecting faces of Rhomboid prisms are uncoated and rely on Total Internal reflection. Rhomboid prisms can be coated to increase the angular range over which the prism will work but this will increase the losses.

Rhomboid prisms can be used to displace a light beam laterally, without changing its direction, in effect representing a pair of single mirrors.

We supply high quality reflecting prisms, typically, but not necessarily made of BK7, which rely on total internal reflection in order to move a light beam. Our prisms can be supplied in varying sizes; more specifically our rhomboid prisms can be coated to your need in order to increase the angular range over which the prism will work.

If you have a prototyping need, or a production run requirement for a custom reflecting prism, we will be able to accommodate your requirements.

Every Custom rhomboid prism is rigorously inspected in our state-of-the-art Metrology lab, using our Trioptics Prism Master which is capable of measuring to tolerances of ±3 arc seconds.

Contact our multilingual technical sales team and discover how Knight Optical’s high quality reflecting prism can improve your product and supply chain experience.

Material:
Dimensions:
Surface Quality:
BK7 or equivalent
± 0.2 mm
60/40 scratch dig

Anti-Reflective coatings are available on request.
Mirror coatings are available.

2 Items

Name Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Material Price Buy
PRK1542 16 15 42 10.6 N-BK7 or equivalent
$76.31
PRK1521 16 15 21 10.6 N-BK7 or equivalent
$68.81
