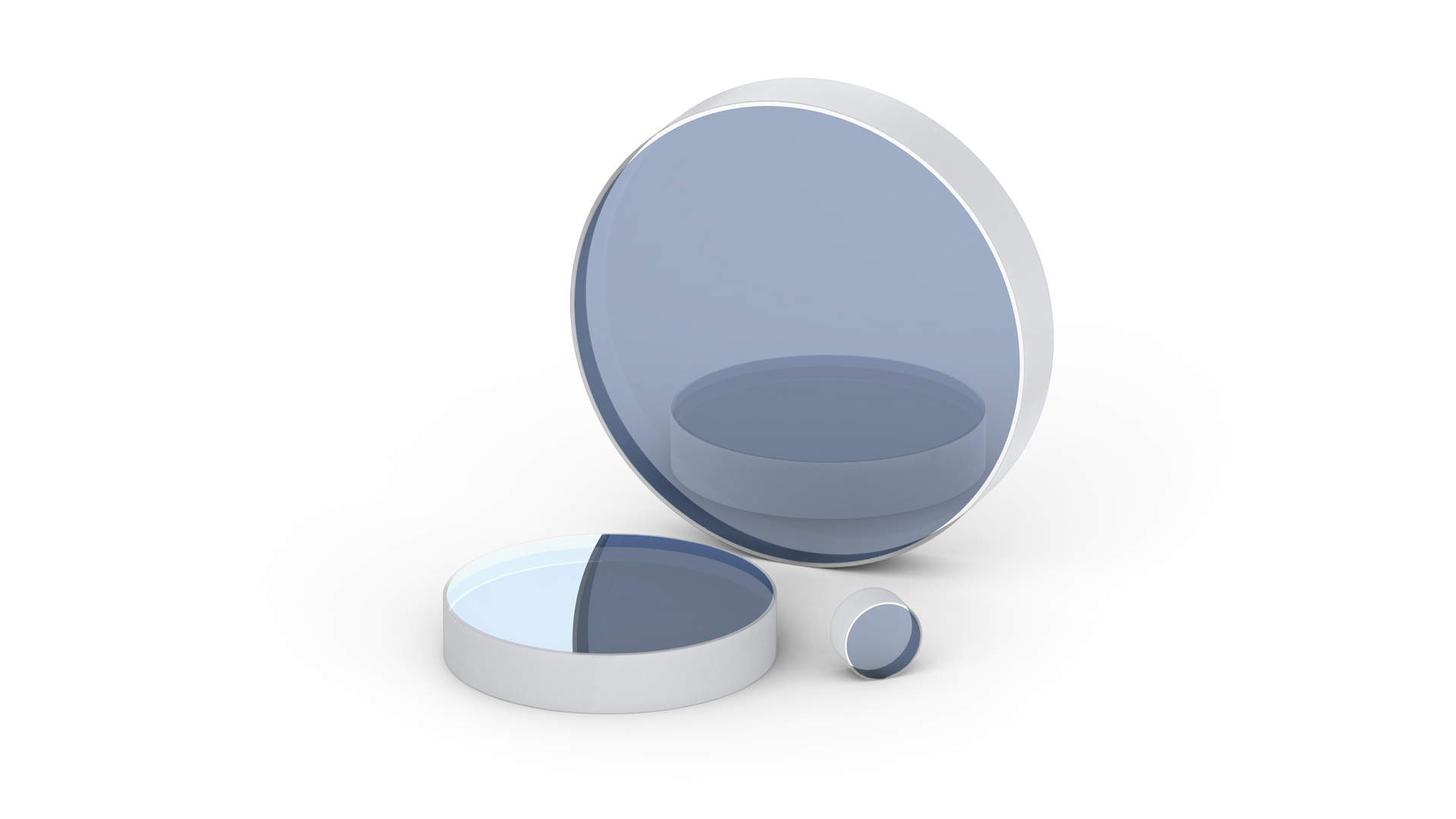

Wide-angle laser line mirrors designed for use with Yb:YAG (515nm, 1030nm), Yb:KYW (1030nm), and Yb:KGW (1030nm) diode-pumped solid-state lasers (DPSSL) and laser systems. Our broadband laser line mirrors work between 700-900nm, ideal for Ti:Sapphire lasers.

  • Ion beam sputtered (IBS) coating perfect for demanding laser applications.
  • Reflection > 99.9%.
  • Our wide-angle laser line mirrors work between 0-45°.
  • Group delay dispersion < 30 fs2 ideal for ultrafast pulse lasers, especially Ti:Sapphire lasers where pulse broadening can be an issue.
  • High laser damage threshold (LDT).
  • Stress compensating coating (SCC) to improve the surface flatness.

Material:
Diameter:
Thickness:
Surface Quality S1:

Surface Quality S2:
Flatness S1:
Parallelism:
Chamfer:
Coating S1:

UV Fused Silica
+0/-0.1mm
+/-0.1mm
< 10/5 for 12.7mm/25.4mm diameters
< 20/10 for 50.8mm diameter
< 80/50
< λ/8 over 80% (CA) or specified aperture
< 5 arc mins
0.1-0.4mm
R>99.9% @ 700-900nm, AOI 45°, |GDD Rs| < 20 fs2
R>99.9% @ 500-530nm, AOI 0-45°, |GDD R| < 20 fs2

R>99.9% @ 1010-1050nm, AOI 0-45°, |GDD R| < 30 fs2 @ 1030nm



Custom low GDD ultrafast laser line mirrors are also available upon request with custom sizes between 3 to 250nm and coating wavelength ranges between 200-5000nm. Contact us with your product enquiry.

A stress compensating coating (SCC) can be applied to side 2 to increase the surface accuracy, this would generate a 4-6 week lead time.

11 Items

Name Diameter (mm) Thickness (mm) Wavelength range (nm) Coating S1 Coating S2 AOI (°) Flatness Type Price Buy
LLM4644

PDF

50.8 9.52 700-900nm Rs>99.9% No 45 <λ/8 over 22mm Broadband
£415.00
LLM2520

PDF

50.8 9.52 700-900nm Rs>99.9% SCC 45 <λ/8 over CA Broadband
£467.50
LLM2779

PDF

25.4 6.35 700-900nm Rs>99.9% No 45 <λ/6 over 15mm Broadband
£215.00
LLM2519

PDF

25.4 6.35 700-900nm Rs>99.9% SCC 45 <λ/8 over CA Broadband
£238.00
LLM4643

PDF

12.7 6.35 700-900nm Rs>99.9% No 45 <λ/8 over CA Broadband
£185.00
LLM2050

PDF

50.8 9.52 500-530 R>99.9% No 0-45 <λ/8 over 20mm Wide-Angle
£465.00
LLM1276

PDF

50.8 9.52 1010-1050 R>99.9% No 0-45 <λ/8 over 20.5mm Wide-Angle
£465.00
LLM2051

PDF

25.4 6.35 500-530 R>99.9% No 0-45 <λ/8 over 20mm Wide-Angle
£198.50
LLM4642

PDF

12.7 6.35 500-530 R>99.9% No 0-45 <λ/8 over 10mm Wide-Angle
£175.50
LLM4641

PDF

12.7 6.35 1010-1050 R>99.9% No 0-45 <λ/8 over 9mm Wide-Angle
£175.50
LLM1277

PDF

25.4 6.35 1010-1050 R>99.9% No 0-45 <λ/4 over 10mm Wide-Angle
£198.50

11 Items
