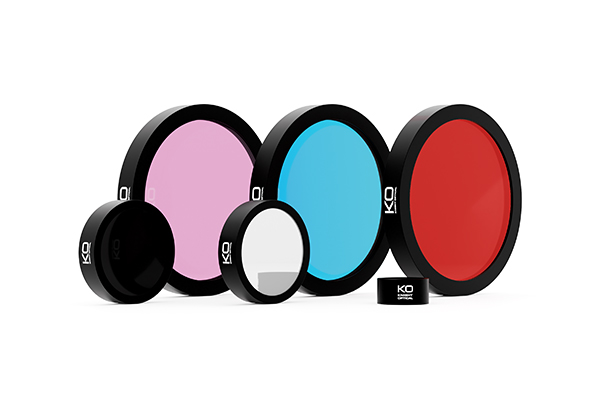

Optical Interference Bandpass Filters
High Performance Thin Film Optical Filters
Knight Optical's optical interference bandpass filters transmit a precise wavelength while blocking unwanted light.
Stock Interference Filters from 214-2000nm
With 3nm narrowband widths to 100nm broadband optical filters availble, which are hermetically sealed and CNC-scribed for long-term stability.
Laser line, Fluorescence, and Imaging Applications
Stock filters provide a cost effective solution for prototyping.
Custom Optical Interference Filters Available
If our stock optical interference bandpass filters do not meet your requirements, bespoke designs are available upon request.
| Name | CWL(nm) | Peak Transmission (%) | FWHM | Diameter (mm) | Thickness (mm) | Blocking Type | Avg. Blocking Range | Avg. Blocking OD | Price | Buy |
| 1500DIB12 pdf | 1500 | 40 | 15 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1480DIB12 pdf | 1480 | 40 | 15 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1460DIB25 pdf | 1460 | 40 | 14 | 25 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$190.85
|
|
| 1440DIB12 pdf | 1440 | 40 | 14 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1400DIB25 pdf | 1400 | 40 | 14 | 25 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$190.85
|
|
| 1400DIB12 pdf | 1400 | 40 | 14 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1360DIB25 pdf | 1360 | 45 | 13 | 25 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$190.85
|
|
| 1360DIB12 pdf | 1360 | 45 | 13 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1320DIB12 pdf | 1320 | 45 | 12.5 | 12.5 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$123.43
|
|
| 1300DIB25 pdf | 1300 | 45 | 12 | 25 | 6.1 | Dielectric | 200nm to 1850nm | 5 |
US$190.85
|
