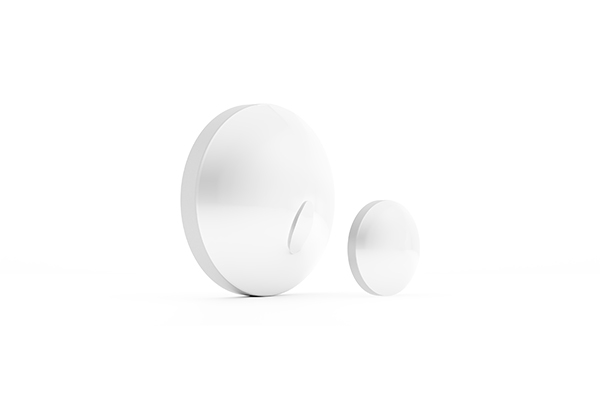

Concave mirrors can be used to create images of light sources.  Concave mirrors can be tricky to use as the object and image will now exist in the same space. However concave mirrors have one incredible characteristic in that the image location and quality is completely independent of the wavelength and so does not create chromatic aberration unlike equivalent lens optics. This allows the design of very wide spectral range instruments and does allow a system that will work in the IR to be aligned using visible light.

Concave mirrors are typically used in reflecting telescope, electron microscopes and a range of scientific instrumentation applications where there is a requirement to image distant objects.

Our range of quality concave mirrors are coated for use in the visible and near infra-red regions.  We can also strip the aluminium coating from our stock concave mirrors and coat with a desired coating, i.e. Protected Gold or UV aluminium.  This can be done at short notice to create your bespoke custom concave mirror.  This can be very helpful with development work.

Material:
Diameter:
Focal Length:
Surface Quality:
Coating:

White float glass
+0/-0.2 mm
±2%
<40-20 scratch/dig
Protected aluminium/ Visible use (MV2)
Ali/SiO₂ R.avg.>88%@450-650nm,AOI=0°-45°

Cutting or edging to smaller diameters.
Resizing to square or rectangular apertures.
Stock mirrors can be stripped of standard coating and custom coatings applied for quick turnaround.
Mounting options.
Our range of concave lenses can be coated to achieve custom concave mirrors.

18 Items

Name Wavelength range (nm) Coating Focal Length (mm) Diameter (mm) Radius (mm) Price Buy
MCQ1625 450-650 Ali/SiO2 (88% visible) 16 25 32
$31.21
MCQ2525 450-650 Ali/SiO2 (88% visible) 25 25 50
$31.21
MCQ2540 450-650 Ali/SiO2 (88% visible) 25 40 50
$38.85
MCQ4025 450-650 Ali/SiO2 (88% visible) 40 25 80
$31.21
MCQ4040 450-650 Ali/SiO2 (88% visible) 40 40 80
$38.85
MCQ5025 450-650 Ali/SiO2 (88% visible) 50 25 100
$31.21
MCQ5040 450-650 Ali/SiO2 (88% visible) 50 40 100
$38.85
MCQ6525 450-650 Ali/SiO2 (88% visible) 65 25 130
$31.21
MCQ6540 450-650 Ali/SiO2 (88% visible) 65 40 130
$38.85
MCQ7525 450-650 Ali/SiO2 (88% visible) 75 25 150
$31.21
MCQ7539 450-650 Ali/SiO2 (88% visible) 75 39 150
$38.85
MCQ7540 450-650 Ali/SiO2 (88% visible) 75 40 150
$38.85
MCQ10025 450-650 Ali/SiO2 (88% visible) 100 25 200
$31.21
MCQ10040 450-650 Ali/SiO2 (88% visible) 100 40 200
$38.85
MCQ15025 450-650 Ali/SiO2 (88% visible) 150 25 300
$31.21
MCQ15040 450-650 Ali/SiO2 (88% visible) 150 40 300
$38.85
MCQ17525 450-650 Ali/SiO2 (88% visible) 175 25 350
$31.21
MCQ17540 450-650 Ali/SiO2 (88% visible) 175 40 350
$38.85

18 Items
